Introduction

After Kroto et al. discovered [C₆₀] fullerenes in 1985, a number of studies were conducted on a variety of possible applications.¹ Owing to its semiconductor properties and ability to absorb electrons, the use of fullerene as an oxidizing agent has been extensively investigated.² Furthermore, modifications of the surface or insertion of other molecules inside the empty space of fullerene have also been explored in order to tune its physical and chemical properties.³ The oxidized fullerene has different types of functionalities and needs to be studied for its effects.⁴ In particular, many researcher are interested in the ability of oxidized fullerene, efficiently converting metal ions into metallic nanoparticles. Recently, nanosized metal particles have received much interest due to their potential applications in microelectronics, photocatalysis, magnetic devices, chemisorption, aerosols, and powder metallurgy.⁵ Nanoscale metal particles can produce highefficiency catalysts since their surface area is larger than the bulk metal size. The synthesis of nanoparticles of the desired size and shape is of tremendous significance in the emerging field of nano-technology.⁶ Especially, gold nanoparticles have different properties depending on their shape and size.^7-12 The size and shape dependent physical properties of inorganic nanoparticles provide tunable materials with broad potential applications.¹³ Generally, the size of the metal nanoparticles, the shape, and the surface variation are some of the most important factors that may affect their physical/chemical properties.¹⁴ For instance, gold nanoparticles can absorb and scatter light stronger depend on size and shape than other metal nanoparticles.¹⁵ Many of these properties, including strong absorption, scattering and intense local field generation result from the coherent oscillation of conduction band electrons, known as localized surface plasmon resonance.¹⁶ In general, gold nanoparticles have higher chemical stability than silver nanoparticles when they are dispersed in aqueous solutions and biological media.^17,18The higher chemical stability has led to abundant applications in the fields of spectroscopy, catalysis, energy, and biology.^19-21 These features will be used to reduce 4-nitroaniline to 1,4-phenylenediamine. In laboratories and industries, various types of indicators and organic dyes are used for various purposes.²² When such substances are disposed of without a proper treatment, they can seriously pollute the ecosystem including household water supply. In particular, 4-nitroaniline is harmful to all aquatic organisms and releasing 4-nitroaniline can cause long-term damage to the environment.²³ On the contrary, the catalytic reduction of 4-nitroaniline allows it to be converted into a less toxic compound like 1,4-phenylenediamine in an aqueous medium.²⁴ Hence, it is desirable to develop an environmental friendly method to achieve the reduction of 4-nitroaniline in an aqueous medium.²⁵

Experimental

Results and Discussion

The presence of metallic gold nanoparticles in colloidal state in an aqueous solution can be easily detected by a spectro-photometric analysis. Figure 1 shows the UV-vis spectrum of the gold nanoparticles synthesized with fullerene oxide, which has a surface plasmon band peak in the range between 530 and 540 nm.^27,28

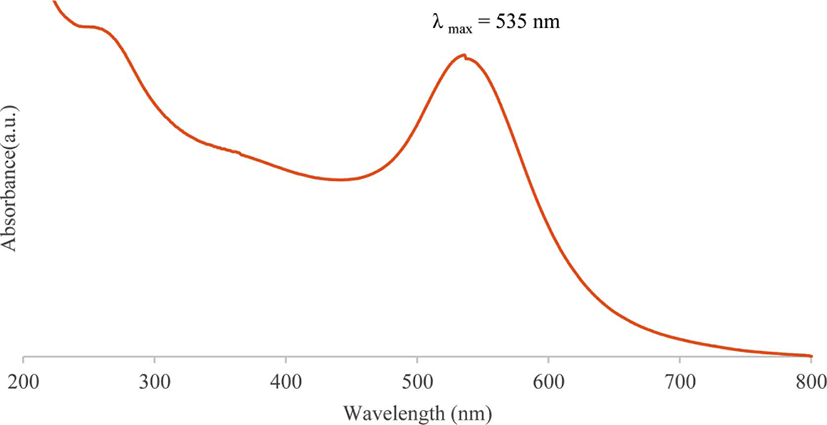

Figure 1. UV-vis spectrum of synthesized gold nanoparticles using fullerene oxide [C₆₀(O)_n, n ≥ 1]

Download Original Figure

As illustrated in Figure 2, the XRD patterns showed 2θ values of 38.27°, 44.39°, 64.73°, 77.76°, and 81.94° matching to the (111), (200), (220), (311), and (222) as a reflective plane. The XRD pattern indicates that the gold nanoparticles crystallized in a face centered cubic (fcc) lattice structure and were successfully synthesized using fullerene oxide [C₆₀(O)_n, n ≥ 1] as the catalyst.^29-31

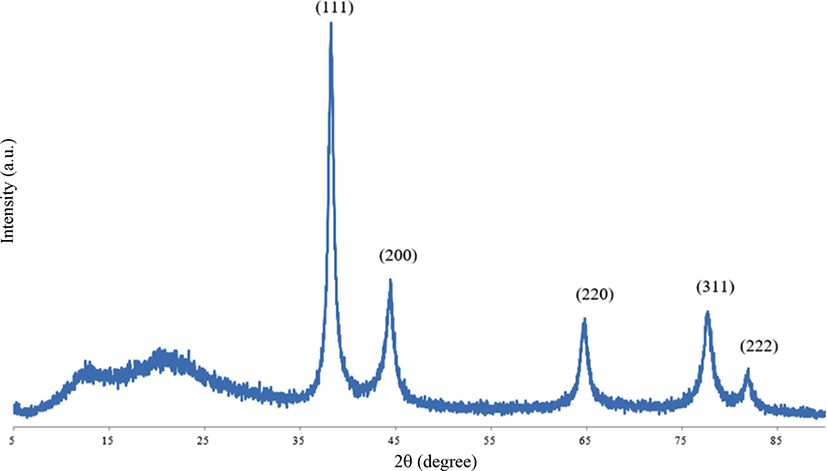

Figure 2. XRD patterns of synthesized gold nanoparticles using fullerene oxide [C₆₀(O)_n, n ≥ 1].

Download Original Figure

Figure 3 describes the SEM image of the synthesized gold nanoparticles, suggesting that they possess an octahedral-like shape.

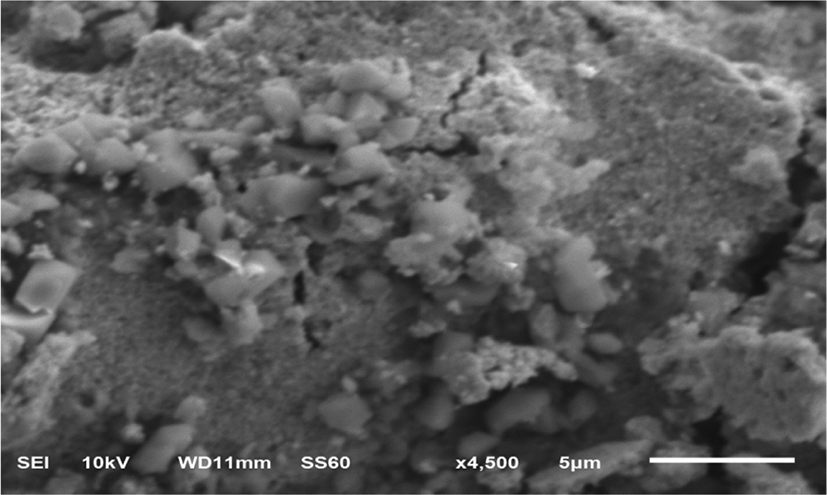

Figure 3. SEM image of synthesized gold nanoparticles using fullerene oxid[C₆₀(O)_n, n ≥ 1].

Download Original Figure

Figure 4 illustrates the UV-vis spectra of 4-nitroaniline, which was measured at one minute time interval during the catalytic reduction by the gold nanoparticles in the presence of sodium borohydride. The addition of gold nanoparticles to an aqueous mixture containing NaBH₄ and 4-nitroaniline resulted in a prompt decrease in the absorption band at 381 nm and a concomitant increase in the absorption band at 240 nm, with the advent of a new absorption band at 303 nm. Due to the reduction of 4-nitroaniline, the concentration of 4-nitroaniline gradually decreased. It is apparent that the gold nanoparticles act as catalysts to accelerate the reduction of 4-nitroaniline. Moreover, gold nanoparticles were effective as reduction catalysts for 4-nitroaniline in the presence of NaBH₄.³²

Figure 4. UV-vis spectra of 4-nitroaniline reduction with gold nanoparticles as catalyst in the presence of NaBH_4.

Download Original Figure

As shown in Figure 5, the reduction of 4-nitroaniline by NaBH₄ and the gold nanoparticle catalyst follows pseu-do-first-order kinetics. The reaction rate was established by equation ln(C/C₀) = −k·t, where k is the rate constant, C/C₀ is the concentration ratio for different measuring states at the time t and initial state.³³

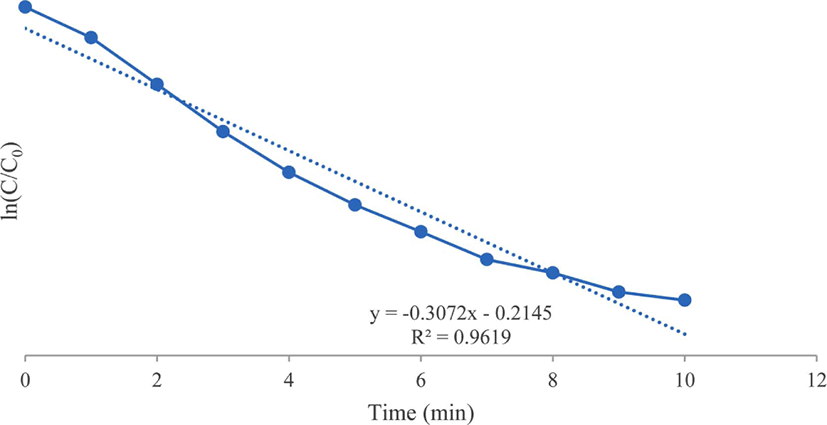

Figure 5. Kinetics of 4-nitroaniline reduction using synthesized gold nanoparticles as catalyst.

Download Original Figure

Conclusions

In summary, gold nanoparticles were successfully synthesized in the presence of fullerene oxide [C₆₀(O)_n, n ≥ 1], possesses an octahedral-like shape. The as-prepared gold nanoparticles were tested as catalysts for promoting the reduction of 4-nitroaniline to 1,4-phenylenediamine, and they exhibited excellent catalytic activity in this model reaction. The reductive reaction of 4-nitroaniline was identified to follow the pseudo-first order kinetics at room temperature.
